Product Number :
Hydraulic Pile PullerOrder(MOQ) :
1Payment :
T/TProduct Origin :
Xuzhou,ChinaShipping Port :
ShanghaiLead Time :
7 working daysWarranty period :
1 yearTechnical Specification
| Medium and high pressure DTH drill bit | ||||||||||
Specifications |
Number of Vent Holes |
Nominal Dia. (mm) |
Side Teeth |
Middle Teeth |
Weight (kg) |
|||||
| TZ-90P—TZ-508P | 2-4 | φ90-φ508 | 6-24xφ13-φ19 | 4-74xφ12-φ19 | 4-311 | |||||
| TZ-115P1—TZ-254P1 | 2-3 | φ115-φ254 | 7-16xφ14-φ18 | 7-11xφ12-φ16 | 8-58 | |||||
| TZ-130P2—TZ-254P2 | 2-3 | φ130-φ254 | 7-11xφ14-φ18 | 7-17xφ13-φ16 | 8-58 | |||||
| TZ-130P3—TZ-216P3 | 2-3 | φ130-φ216 | 7-10xφ16-φ18 | 7-12xφ14-φ16 | 15-50 | |||||
| Medium and high pressure DTHimpactor | ||||||||||
| Specifications | Drilling Dia |
Length | Working Pressure |
Air Consumption |
Connection Thread |
|||||
| mm | mm | Mpa | m³/min | |||||||
| TZ90—TZ110 | φ90—φ150 | 870-917 | 0.8—1.2 | 6-11 | φ54—φ65—6 | |||||
| TZ80 | φ80—φ85 | 867 | 0.8—2.1 | 3-12 | φ47—6 | |||||
| TZ90—TZ165 | φ90—φ305 | 908-1372 | 0.8—2.1 | 3-26 | φ53—φ99.5—8 | |||||
| TZ110A | φ110—φ130 | 994 | 1.0—2.1 | 3.5—15 | φ64—8 | |||||
| TZ130A | φ130—φ152 | 1067 | 0.8—2.1 | 3-14 | φ83—12 | |||||
| TZ140A | φ140—φ152 | 1220 | 0.8—2.1 | 46.5—18 | φ84—8 | |||||
| TZ165A | φ165—φ203 | 1076 | 0.8—2.1 | 6.8—20 | φ104.4—12 | |||||
| TZ200 | φ203—φ350 | 1551 | 1.0—2.1 | 12-31 | φ128—10 | |||||
| TZ200A | φ203—φ350 | 1551 | 1.0—2.1 | 12-35 | φ128—10 | |||||
| TZ200B | φ203—φ254 | 1450 | 0.8—2.1 | 9.6—25 | φ128—10 | |||||
| TZ200C | φ203—φ350 | 1551 | 1.0—2.1 | 12-31 | φ128—10 | |||||
| TZ310 | φ311—φ508 | 2110 | 1.0—2.4 | 30-78 | φ210—12 | |||||

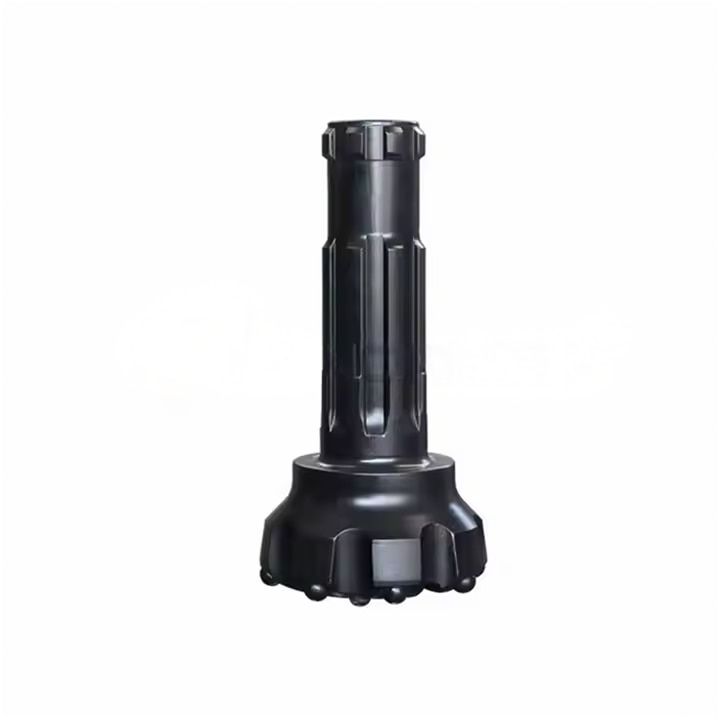

DTH Drill Bits can be divided into the following three types according to their appearance: 1. Flat type: suitable for drilling hard rock layers and highly corrosive rock layers under high wind pressure. 2. Convex type: suitable for drilling soft to medium hard rocks with medium to low wind pressure, with fast drilling speed. 3. Concave type: suitable for all rock layers, especially in medium hard rocks, with good drilling straightness and slag removal effect.
DTH DRILL BIT Customized Acceptable：
1. Bit Diameter, Face Shape. 2. Carbide Button Shape. 3. Qty of The Air Hole.
Production Process
The production process of Drilling Bits involves the following steps:
FAQ
Q1: Are you a manufacturer?
A: Yes, we are a professional down the hole drill rig and top hammer drill rig manufacturer.
Q2: What does your company produce?
A: The company's main products include highway piling and drilling machines, photovoltaic piling and drilling machines, and a variety of air compressors for moving work trucks.
Q3: How about your delivery time?
A: Normally the delivery time is about 7-15 days. For some special case, we can make it within 2 weeks, it depends on different products.
Q4: What methods of payment do you accept?
A: We accept T/T, L/C.
Q5: Do you offer any deals or discounts?
A: Yes, price depends on different quantity, different quantity will give you different price.
PRODUCT FEATURES 1. Ingenious Design, High Penetration Rate, and Long Service Life. 2. Different Product Features Match Different Rock Formations.3. High-grade Steel and Advanced Heat treatment Offer Superior Wear Resistance. 4. Easy for Operation and Cost Effectiveness.
Details
M3 M4 Medium Pressure DTH Mining Air Hammer is a special drilling tool used in mining operations. It is designed to drill holes by impacting rock formations with high-speed impacts.
Details
