Technical Specification

TZ390-Guardrail Pile Driver

Item	Unit	Value
Max. stroke of guide rail	mm	3950
Piling height	mm	3000
Drilling depth	mm	2200
Drilling diameter	mm	50-300
Work dimensions (L ×W × H)	mm	2700×2650×3950
Transport dimensions (L×W× H)	mm	2700×2000×2400
Operating weight	Kg	3000
Rated power	KW	39
Gear pump flow	ml/r	40-50
Hydraulic system pressure	bar	160-200
Hydraulic system flow	ml/r	63-80
Hydraulic hammer model	/	85
Impact frequency	bpm	400-800
Single impact energy	J	1280
Drill rod diameter	mm	85
Drill cap	mm	Customized according to the drawings
Torque of walking motor	Nm	1185-1450
Walking speed	Km/h	5-12
Torque of hydraulic motor	Nm	2700-3300
Inclination angle of sliding guide frame	°	Left30/Right5
Front and rear adjustment angle of frame	°	0-15
Hydraulic oil tank capacity	L	80
Fuel tank capacity	L	68

Some features of guardrail pile driver

Inner frame

The inner frame can extend horizontally by 450 mm.

Moreover, the entire support can be adjusted in angles in all directions, front, back, left and right, to meet the needs in construction.
Mast

The vertical guide rail is as high as 3.95 m and can handle piles less than 3 m.

By replacing the hydraulic hammer with a rotary head, it can drill to a maximum depth of 2.2 m.
Wheel spacing

The widened wheel track of 1.78 meters provides stronger stability for its operation and walking.

At the same time, it significantly improves the precision of operation. This is a design with higher efficiency and safety.

Engine

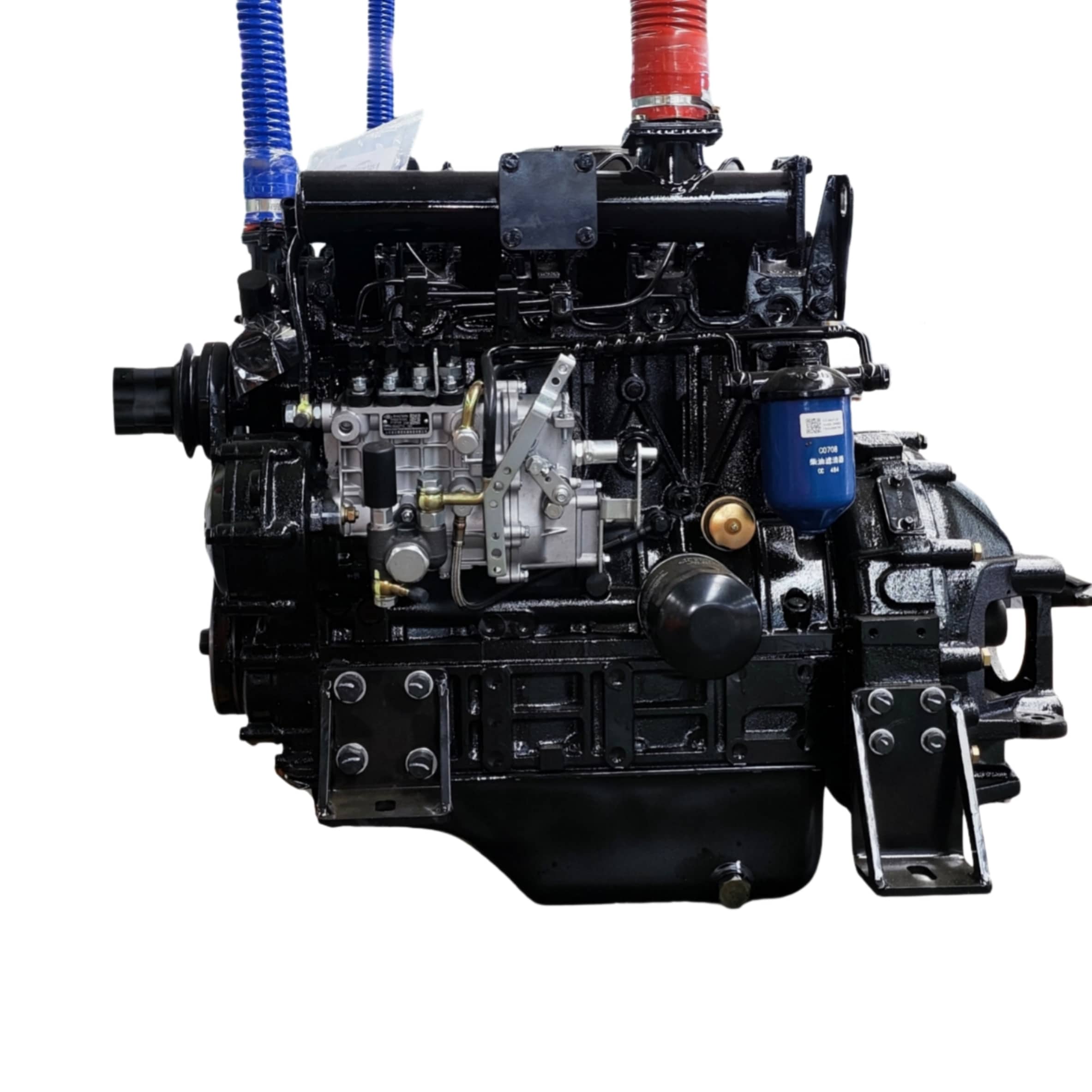

It is equipped with a Changchai 490B four-cylinder diesel engine with 39 KW and 52 horsepower. The engine has strong power, and diesel is more economical.

The engine supports customization (such as Cummins engines, etc.)
Hammer
Customizable.

Single impact energy:1260 Joules (450-900 BPM/295 KG with a working weight of 440 KG)

Single impact energy:1460 Joules （450-700 BPM/500 KG with a working weight of 650 KG)
Integrated operating console
The integrated operating console allows all operations of the machine to be completed by one person driving.

It is simple and easy to get started.

Air cut brake
Whatever you needs, The rear wheel brake adopts a real air cut brake and is equipped with two air pumps.

The air cut brake has strong braking force, providing higher safety performance for the whole vehicle. Moreover, it is compatible with other systems of the machine, easy to maintain, and makes construction operations more efficient.
Hydraulic oil tank
Capacity: 80 L

A breather valve is used on the hydraulic oil tank, which can keep the hydraulic oil clean and maintain the stable internal pressure of the hydraulic oil tank, greatly improving safety. At the same time, it can prevent the emulsification of hydraulic oil and prolong the service life of hydraulic oil.
Three--way valve

A three-way valve is added to the main oil return pipe. When piling and drilling, the oil return direction can be switched arbitrarily. Speeding up the oil return direction makes the frequency higher and faster.

Videos

CLIENT FEEDBACK

By choosing TeZhong, you will not only get world-class equipment, but you will also be able to further increase your profitability, welcome to join us.

Production Process

The production process of Guardrail pile driver involves the following steps:

Design and Planning
Material Preparation
Component Fabrication
Assembly
Testing and Quality Control
Painting and Finishing
Packaging and Shipment
Installation and Commissioning
Maintenance and Support

Frequently asked questions

1. What extras can be purchased?

Rotary Drills (small 1,500 NM & large 5,000 N.m)

A large selection of bits/complete sets.

Radio Control Systems（Remote control)

Hammer Impact Plate/Masks (customisable for a variety of pile profiles).

Rotary Head For Screw Piling (up-to 8000 N.m).

Augers for use with 2500 N.m rotary head (∅200 mm & 200 mm with tip, ∅250 mm & ∅250 mm with tip ).

A series of consumables, such as air filters and so on.

2. What can the TZ390 be used for?

Guardrails/Road safety barriers & highway fencing.

Screw piling.

Drilling - sustained or occasional

Carports.

Agricultural Fencing.

Equestrian & Wildlife Projects.

And much more.

3.What does the warranty cover and how long?

One year manufacturer's warranty from time of arrival.

The whole machine is under warranty for one year except for wearing parts.

Electrical accessories are under warranty for 3 months.

It does not cover damage caused by not following manufacturers instructions on use, maintenance and servicing.

4.What pile dimensions can the TZ390 handle?

The TZ390 can handle piles with a length of less than 3.0 m. It can handle any pipe type.Only the specific dimensions of the pile need to be provided.

Some examples of square/rectangular post dimensions.

230 mm × 170 mm

202 mm × 202 mm

250 mm × 110 mm

5.Can the TZ390 be used for drilling or screw piling?

Drilling and Screw piling:Yes

By replacing the hammer with the rotary drill system, it can be used for drilling and screw piling.For different needs,hydraulic motors with different torques can be matched.

6.Are the TZ390 customisable?

Yes.

It includes:engines of different brands,power levels,or emission standards;hydraulic hammers；rotary heads;drill bits that can complete operations on different pile types;remote control system,etc.

We will customize according to customer requirements.

7.What payment methods do you accept?

We accept T/T or L/C.
