Designed for photovoltaic power plant construction
Pile driving, pulling / Screw pile driving / Auger drilling Impact drilling
Pile Driving Height: 6.0m
Screw Piling Driving Height: 6.0m
Drilling Depth: 5.5m
Drilling Diameter: 50~350mm
Rated Power: 75 KW
Product Number :
TZ536Order(MOQ) :
1Power Type :
DieselWeight :
8300 KgLead Time :
30 Working DaysProduct Origin :
ChinaShipping Port :
Shanghai , Qingdao Port etcWarranty :
1 YearVideo outgoing-inspection :
ProvidedTechnical Specification
TZ536-Piling Rig for Solar PV Ground Mounting
| Item | Unit | Value |
| Piling height | mm | 6000 |
| Drilling depth | mm | 5500 |
| Drilling diameter | mm | 50-350 |
| Work dimensions (L ×W × H) | mm | 4400×2585×7565 |
| Transport dimensions (L×W× H) | mm | 3860×1900×2340 |
| Operating weight | Kg | 8300 |
| Working platform turning angle | ° | 360 |

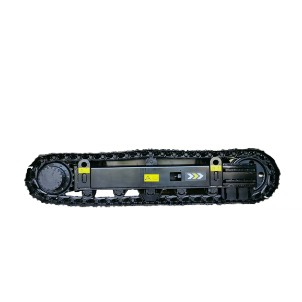

| Track assembly specifications (L×W×H) | mm | 2829×2150×672 |
| Track plate width | mm | 300 |
| Track drive ratio | / | 1 ： 21.4 |
| Climbing ability | % | <58 |
| Rated power | KW | 75 |
| Hydraulic oil pump | Double-pump | 63+20 |
| Hydraulic system pressure | bar | 180 |
| Hydraulic system flow | l/min | 120 |
| Torque of walking motor | Nm | 7700 |
| Walking speed | Km/h | 0-3 |
| Max. torque of hydraulic motor | Nm | 5000 |
| Hydraulic motor flow | l/min | 60-100 |
| Drilling angle (right and left) | ° | 0-10 |
| Drilling angle (anterior and backward ) | ° | 0-100 |
| Hydraulic oil tank capacity | L | ~105 |
| Fuel tank capacitty | L | ~85 |
Some Features
Videos
CLIENT FEEDBACK
By choosing TeZhong, you will not only get world-class equipment, but you will also be able to further increase your profitability, welcome to join us.
Production Process
The production process of piling rig for solar involves the following steps:
Frequently Asked Questions
1. What extras can be purchased?
Rotary Drills (small 1,500 NM & large 5,000 Nm)
A large selection of bits/complete sets.
Radio Control Systems（Remote control)
Hammer Impact Plate/Masks (customisable for a variety of pile profiles).
Rotary Head For Screw Piling (up-to 8000 Nm).
Augers for use with 2500 Nm rotary head (∅200 mm & 200 mm with tip, ∅250 mm & ∅250 mm with tip ).
A series of consumables, such as air filters and so on.
2. What can the TZ536 be used for?
Solar ground mounting using straight piles.
Screw piling.
Drilling - sustained or occasional
Carports.
Guardrails/Road safety barriers & highway fencing.
Agricultural Fencing.
Equestrian & Wildlife Projects.
And much more.
3.What does the warranty cover and how long?
One year manufacturer's warranty from time of arrival.
The whole machine is under warranty for one year except for wearing parts.
Electrical accessories are under warranty for 3 months.
It does not cover damage caused by not following manufacturers instructions on use, maintenance and servicing.
4.What pile dimensions can the TZ536 handle?
The TZ536 can handle piles with a length of less than 5.9 m. It can handle any pipe type.Only the specific dimensions of the pile need to be provided.
Some examples of square/rectangular post dimensions.
230 mm × 170 mm
202 mm × 202 mm
250 mm × 110 mm
5.Can the TZ536 be used for drilling or screw piling?
Drilling and Screw piling:Yes
By replacing the hammer with the rotary drill system, it can be used for drilling and screw piling.For different needs,hydraulic motors with different torques can be matched.
6.Are the TZ536 customisable?
Yes.
It includes:engines of different brands,power levels,or emission standards;hydraulic hammers；rotary heads;drill bits that can complete operations on different pile types;remote control system,etc.
We will customize according too customer requirements.
