Designed for photovoltaic power plant construction；

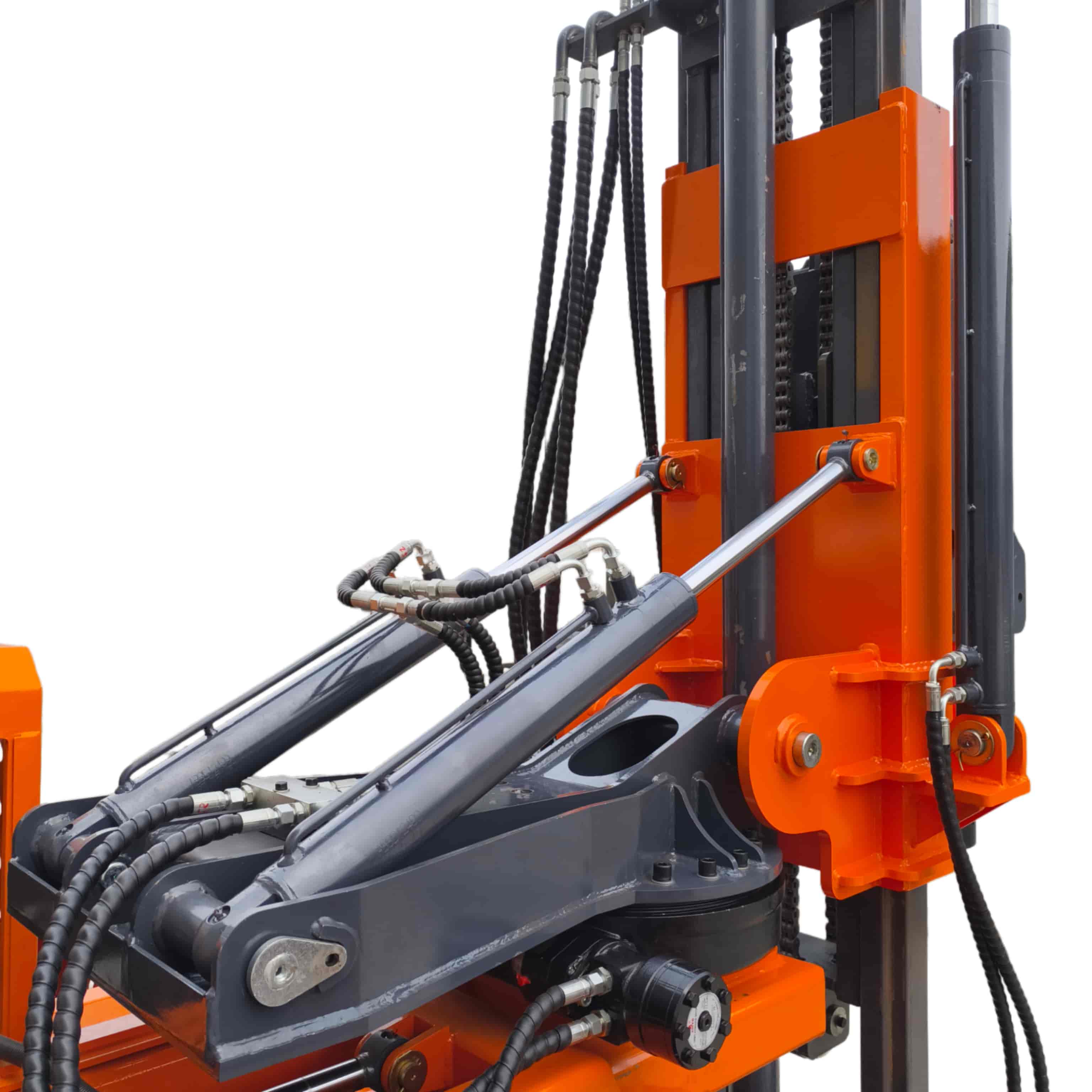

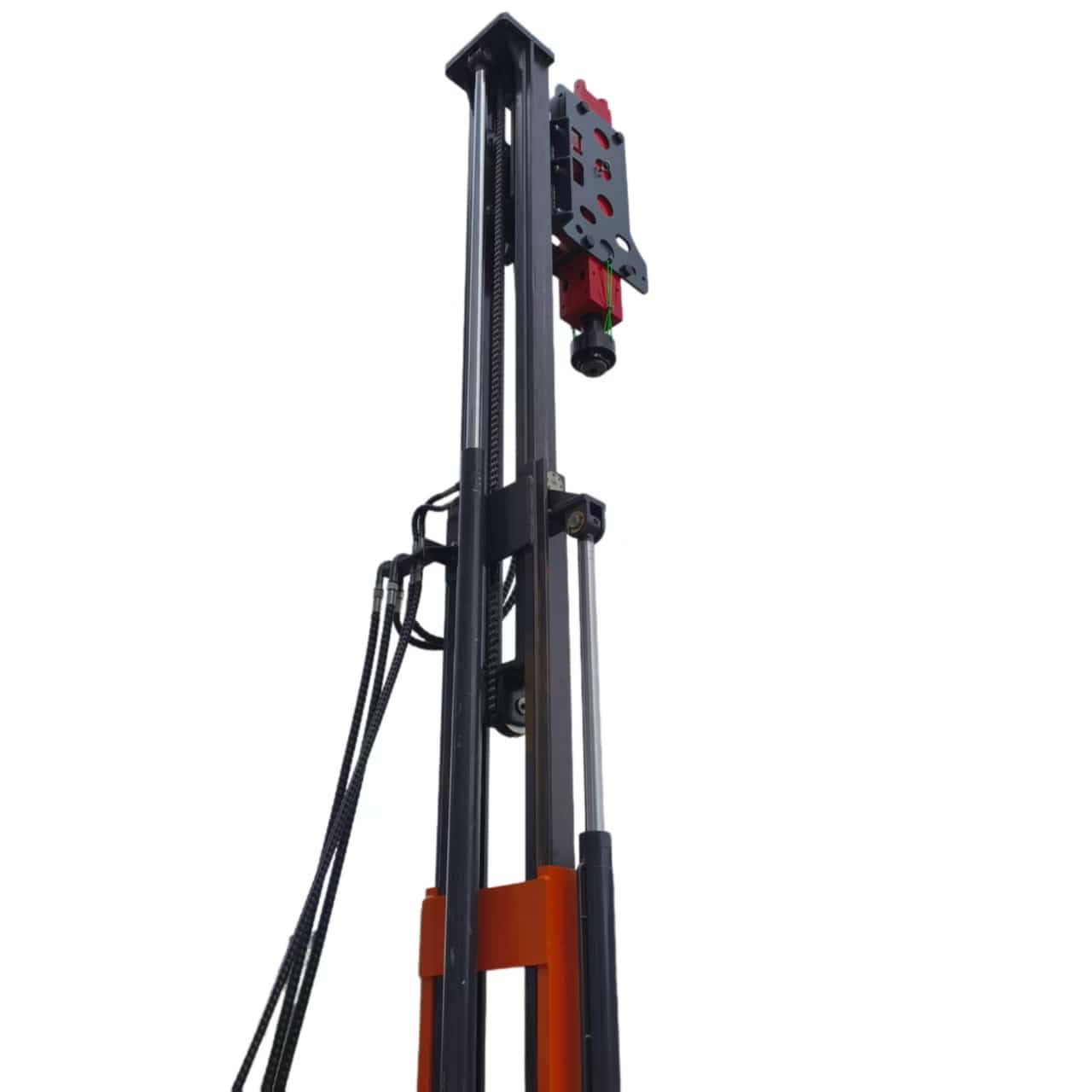

Mast with mast drive.Rotation range: approx. 100°.
Pile driving, pulling / Ground Screw driving / Auger drilling / Impact drilling
Pile Driving Heigh t: 4.5m
Screw Piling Driving Height : 4.5m
Drilling Depth : 3.0m
Drilling Diameter : 50~300mm

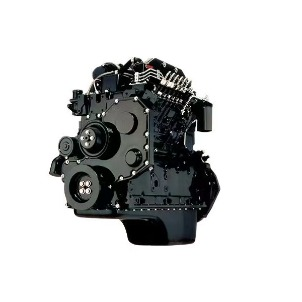

Engine : 75 KW , 102Horsepower
Product Number :
TZ630Order(MOQ) :
1Power Type :
DieselWeight :
4500 KgLead Time :
30 working daysProduct Origin :
ChinaShipping Port :
Shanghai , Qingdao Port etcWarranty :
1 YearVideo outgoing-inspection :

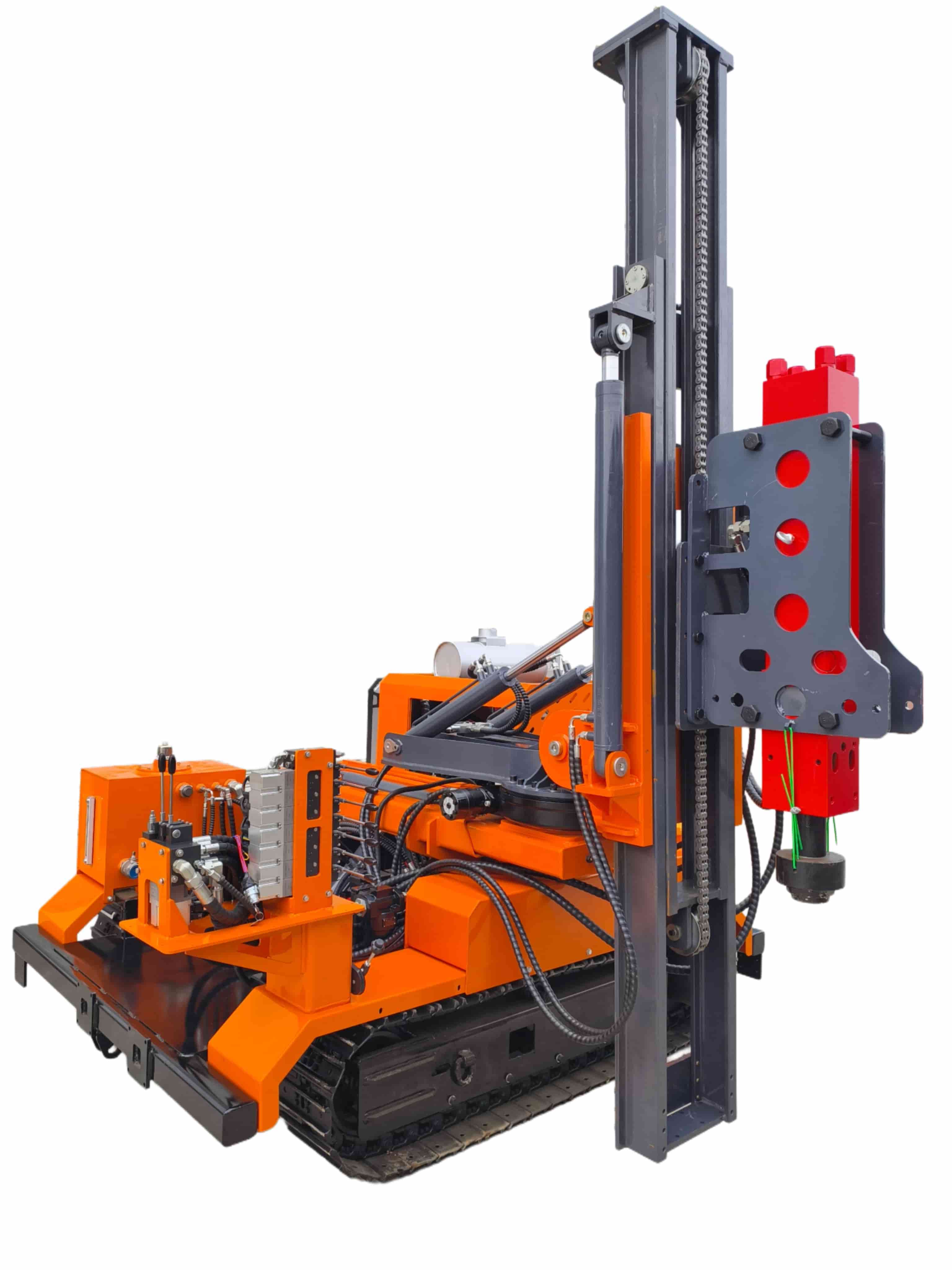

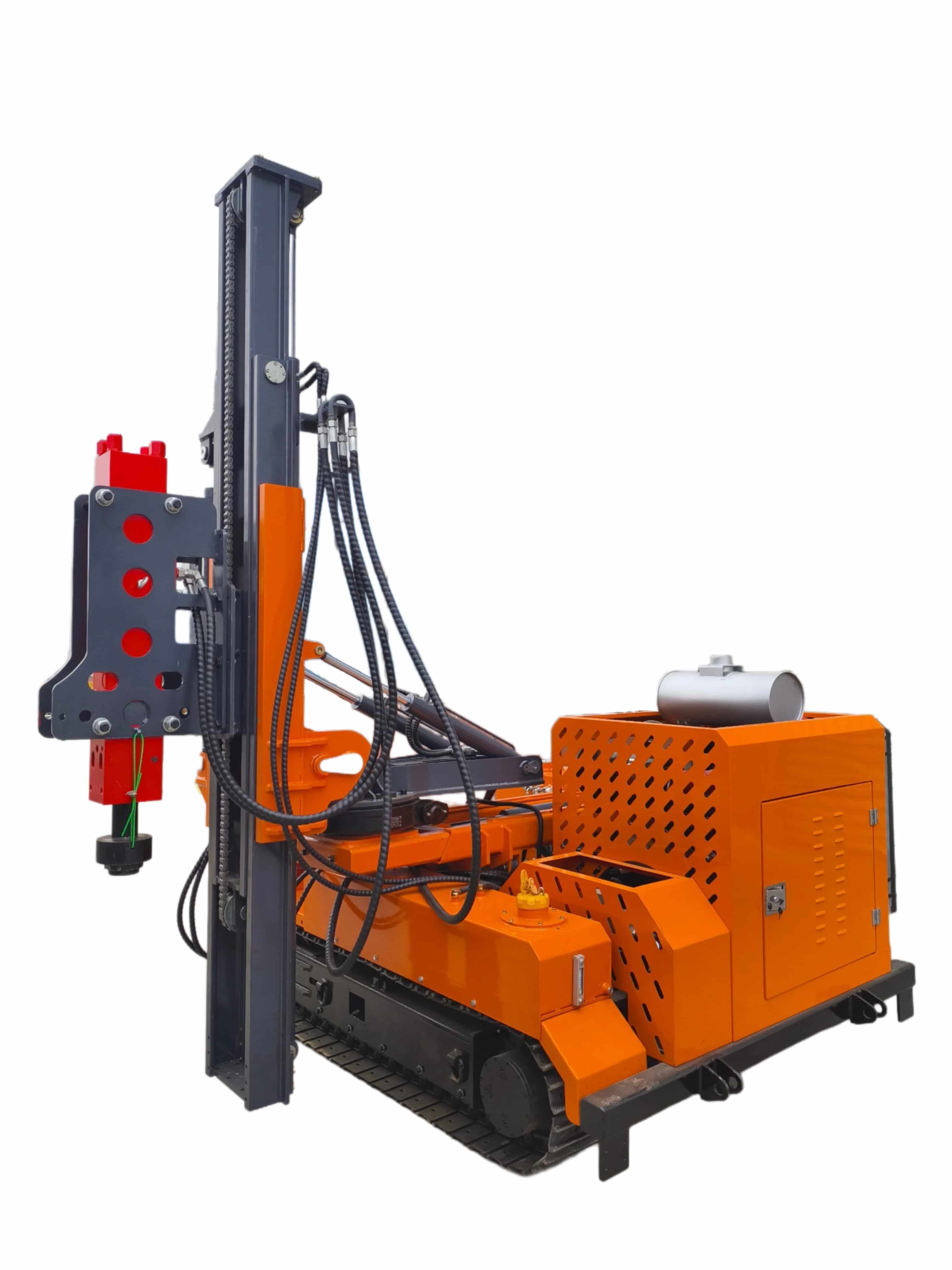

ProvidedTZ630-Ramming machine for Solar PV Ground Mounting
Technical Specification
| Item | Unit | Value |
| Piling height | mm | 4500 |
| Drilling depth | mm | 3000 |
| Drilling diameter | mm | 50-300 |
| Transport dimensions (L×W× H) | mm | 2800×1950×2550 |
| Work dimensions (L×W× H) | mm | 3350×3000×5800 |
| Operating weight | Kg | 4500 |
| Track plate width | mm | 300 |
| Track drive ratio | / | 1:53 |
| Climbing ability | ° | 30 |
| Rated power | KW | 75 |
| Hydraulic oil pump | Single pump | 63 |
| Hydraulic system pressure | bar | 180 |
| Hydraulic system flow | I/min | 150 |
| Torque of walking motor | Nm | 10500 |
| Walking speed | Km/h | 0-2.5 |
| Drilling angle (right and left) | ° | ±15 |
| Drilling angle (anterior and backward ) | ° | 30-110 |
| Hydraulic oil tank capacity | L | ~120 |
| Fuel tank capacity | L | ~100 |
| Single impact energy | J | 1260 |
| Hydraulic hammer strike freguency | bpm | 450-900 |
| Driving flow | I/min | 40-90 |
Some Features
Videos
CLIENT FEEDBACK
By choosing TeZhong, you will not only get world-class equipment, but you will also be able to further increase your profitability, welcome to join us.
Production Process
The production process of TZ630 Solar Ramming Machine involves the following steps:
Frequently Asked Questions
1. What extras can be purchased?
Rotary Drills (small 1,500 NM & large 5,000 N.m)
A large selection of bits/complete sets.
Radio Control Systems（Remote control)
Hammer Impact Plate/Masks (customisable for a variety of pile profiles).
Rotary Head For Screw Piling (up-to 8000 N.m).
Augers for use with 2500 N.m rotary head (∅200 mm & 200 mm with tip, ∅250 mm & ∅250 mm with tip ).
A series of consumables, such as air filters and so on.
2. What can the TZ630 be used for?
Solar ground mounting using straight piles.
Screw piling.
Drilling - sustained or occasional
Carports.
Guardrails/Road safety barriers & highway fencing.
Agricultural Fencing.
Equestrian & Wildlife Projects.
And much more.
3.What does the warranty cover and how long?
One year manufacturer's warranty from time of arrival.
The whole machine is under warranty for one year except for wearing parts.
Electrical accessories are under warranty for 3 months.
It does not cover damage caused by not following manufacturers instructions on use, maintenance and servicing.
4.What pile dimensions can the TZ630 handle?
The TZ630 can handle piles with a length of less than 4 m. It can handle any pipe type.Only the specific dimensions of the pile need to be provided.
Some examples of square/rectangular post dimensions.
230 mm × 170 mm
202 mm × 202 mm
250 mm × 110 mm
5.Can the TZ630 be used for drilling or screw pile driving?
Drilling and Screw piling:Yes
By replacing the hammer with the rotary drill system, it can be used for drilling and screw piling.For different needs,hydraulic motors with different torques can be matched.
6.Are the TZ630 customisable?
Yes.
It includes:engines of different brands,power levels,or emission standards;hydraulic hammers；rotary heads;drill bits that can complete operations on different pile types;remote control system,etc.
We will customize according too customer requirements.
