TZ650 Crawler Intelligent Solar & Guardrail Pile Driver With GPS And Automatic Leveling Function

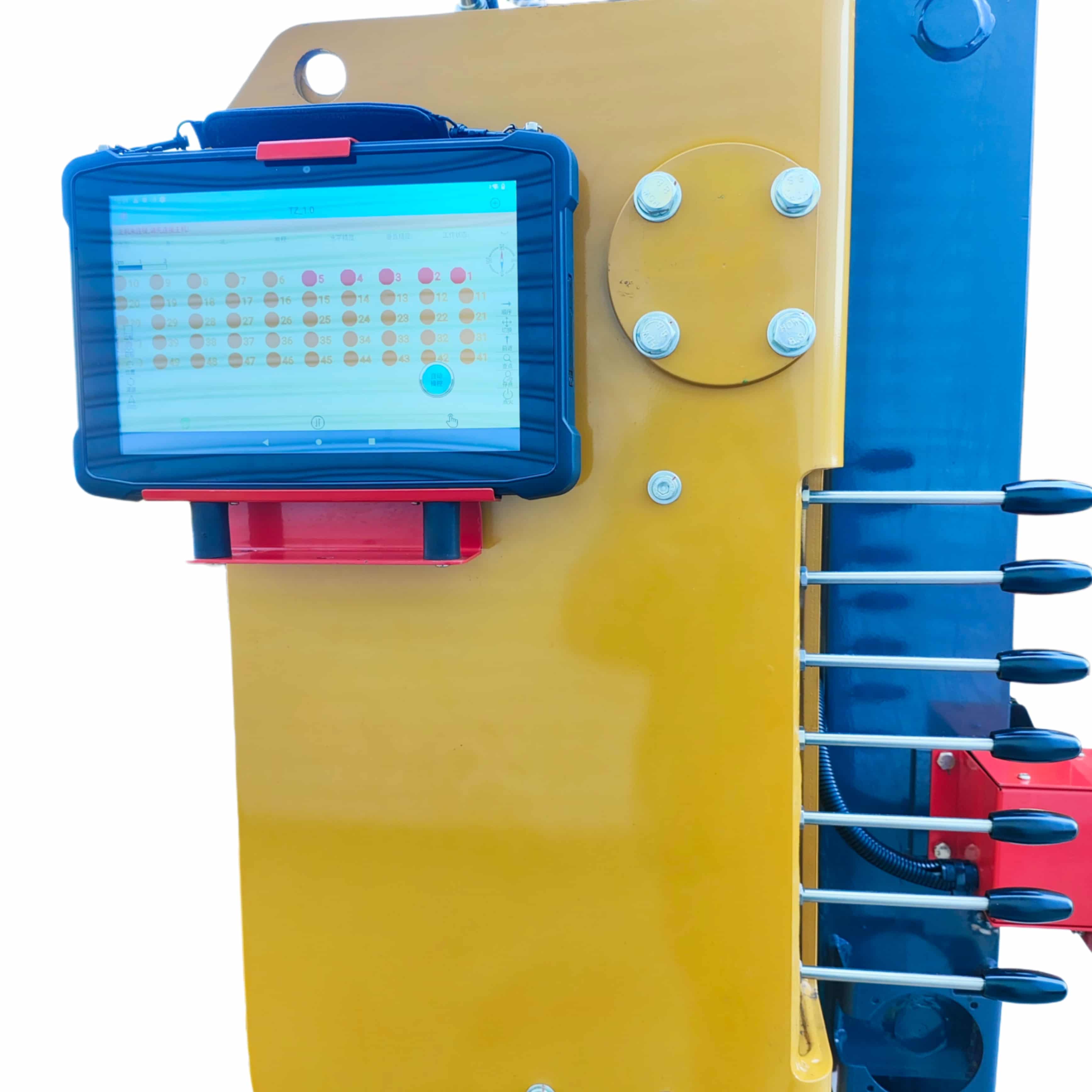

This intelligent Solar pile driver is equipped with an automatic control system, a GPS system, and an automatic leveling system.
For Piling | Pulling | Screw pile driving | Auger drilling
Pile Driving Height: 4.0m
Screw Piling Driving Height: 4.0m
Drilling Depth: 4.0m
Drilling Diameter: 50~350mm
Engine: Commins 4BT3.9-C100 75KW
Product Number :
TZ650Order(MOQ) :
1Power Type :
DieselWeight :
5000 KgLead Time :
30 Working DaysProduct Origin :
ChinaShipping Port :
Shanghai , Qingdao Port etcWarranty :
1 YearVideo outgoing-inspection :
ProvidedTechnical Specification
| Item | Unit | Value |
| Piling height | mm | 4000 |
| Drilling depth | mm | 4000 |
| Work dimensions (L ×W × H) | mm | 2900×2550×2950 |
| Transport dimensions (L×W× H) | mm | 3000×2600×3000 |
| Operating weight | Kg | 5000 |
| Track plate width | mm | 300 |
| Track drive ratio | / | 1:53 |
| Climbing ability | ° | ±18 |
| Engine brand | / | Cummins |
| Engine model number | / | 4BT3.9-C100 |
| Rated power | KW | 75 |
| Hydraulic oil pump | ml | 63 |
| Hydraulic system pressure | bar | 190 |
| Hydraulic system flow | l/min | 150 |
| torque of walking motor | Nm | 10500 |
| Walking speed | m/min | 70/35(Dual-speed) |
| Hydraulic hammer flow | l/min | 40-90 |
| Hydraulic hammer strike frequency | bpm | 450-900 |
| Single impact energy | J | 980 |
| Pile driving Angle (left and right) | ° | ±10 |
| Pile driving Angle（front and rear） | ° | 30-110 |
| Hydraulic oil tank capacity | L | 80 |
| Fuel tank capacity | L | 80 |
Some Features
Videos
T
Client Feedback
By choosing TeZhong, you will not only get world-class equipment, but you will also be able to further increase your profitability, welcome to join us.
Production Process
The production process of TZ650 Intelligent Pile Driver involves the following steps:
Frequently Asked Questions
1. What extras can be purchased?
Rotary Drills (small 1,500 NM & large 5,000 N.m)
A large selection of bits/complete sets.
Radio Control Systems（Remote control)
Hammer Impact Plate/Masks (customizable for a variety of pile profiles).
Rotary Head For Screw Piling (up-to 8000 N.m).
Augers for use with 2500 N.m rotary head (∅200 mm & 200 mm with tip, ∅250 mm & ∅250 mm with tip ).
A series of consumables, such as air filters and so on.
2. What can the TZ650 be used for?
Guardrails/Road safety barriers & highway fencing.
Screw piling.
Drilling - sustained or occasional
Carports.
Agricultural Fencing.
Equestrian & Wildlife Projects.
And much more.
3.What does the warranty cover and how long?
One year manufacturer's warranty from time of arrival.
The whole machine is under warranty for one year except for wearing parts.
Electrical accessories are under warranty for 3 months.
It does not cover damage caused by not following manufacturers instructions on use, maintenance and servicing.
4.What pile dimensions can the TZ650 handle?
The TZ390 can handle piles with a length of less than 3.5 m. It can handle any pipe type.Only the specific dimensions of the pile need to be provided.
Some examples of square/rectangular post dimensions.
230 mm × 170 mm
202 mm × 202 mm
250 mm × 110 mm
5.Can the TZ650 be used for drilling or screw piling?
Drilling and Screw piling:Yes
By replacing the hammer with the rotary drill system, it can be used for drilling and screw piling.For different needs,hydraulic motors with different torques can be matched.
6.Are the TZ650 customizable?
Yes.
It includes:engines of different brands,power levels,or emission standards;hydraulic hammers；rotary heads;drill bits that can complete operations on different pile types;remote control system,etc.
We will customize according to customer requirements.
7.What payment methods do you accept?
We accept T/T or L/C.

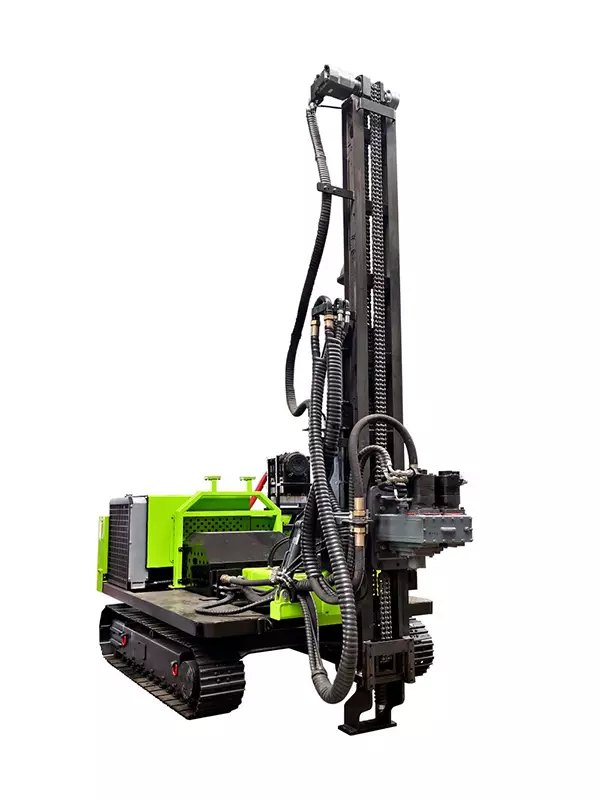

Designed for photovoltaic power plant construction Pile driving, pulling / Screw pile driving / Auger drilling / Impact drilling Pile Driving Height: 6.0m Screw Piling Driving Height: 6.0m Drilling Depth: 5.5m Drilling Diameter: 50~350mm Rated Power: 75/91 KW
Details
For Solar PV Ground Mounting | Piling | Pulling | Drilling | Screw pile driving | Auger drilling Pile Driving Height: 4.0m Screw Piling Driving Height: 4.0m Drilling Depth: 4.0m Drilling Diameter: 50~400mm Rated Power: 75/91 KW
Details
This intelligent Solar pile driver is equipped with an automatic control system, a GPS system, and an automatic leveling system. For Piling | Pulling | Screw pile driving | Auger drilling Pile Driving Height: 4.0m Screw Piling Driving Height: 4.0m Drilling Depth: 4.0m Drilling Diameter: 50~350mm Engine: Commins 4BT3.9-C100 75KW
Details
Hydraulic screw drill is used for geological exploration and drilling, while screw pile driver is used for driving underground pile foundation. For Pile driving, pulling / Screw pile driving / Auger drilling Impact drilling Pile Driving Height: 4.0m Screw Piling Driving Height: 4.0m Drilling Depth: 4.0m Drilling Diameter: 50~350mm Rated Power: 52KW
Details
Designed for photovoltaic power plant construction Pile driving, pulling / Screw pile driving / Auger drilling Impact drilling Pile Driving Height: 6.0m Screw Piling Driving Height: 6.0m Drilling Depth: 5.5m Drilling Diameter: 50~350mm Rated Power: 75 KW
Details
Designed for photovoltaic power plant construction Pile driving, pulling / Screw pile driving / Auger drilling / Impact drilling Pile Driving Height: 4.0m Screw Piling Driving Height: 4.0m Drilling Depth: 4.0m Drilling Diameter: 50~350mm Rated Power: 52 KW
Details
For Solar PV Ground Mounting | Piling | Pulling | Drilling | Screw pile driving | Auger drilling Pile Driving Height: 4.0m Screw Piling Driving Height: 4.0m Drilling Depth: 4.0m Drilling Diameter: 50~400mm Rated Power: 75/91 KW
Details
The road guardrail pile driver is a specific type of pile driver designed for the construction of guardrail piles using a hydraulic hammer. For Guardrail & Fencing Installation & Piling & Pulling & Driliing Pile Driving Height: 3.0m Screw Piling Driving Height: 3.0m Drilling Depth: 2.2m Drilling Diameter: 50~300mm Rated Power: 39 KW
Details

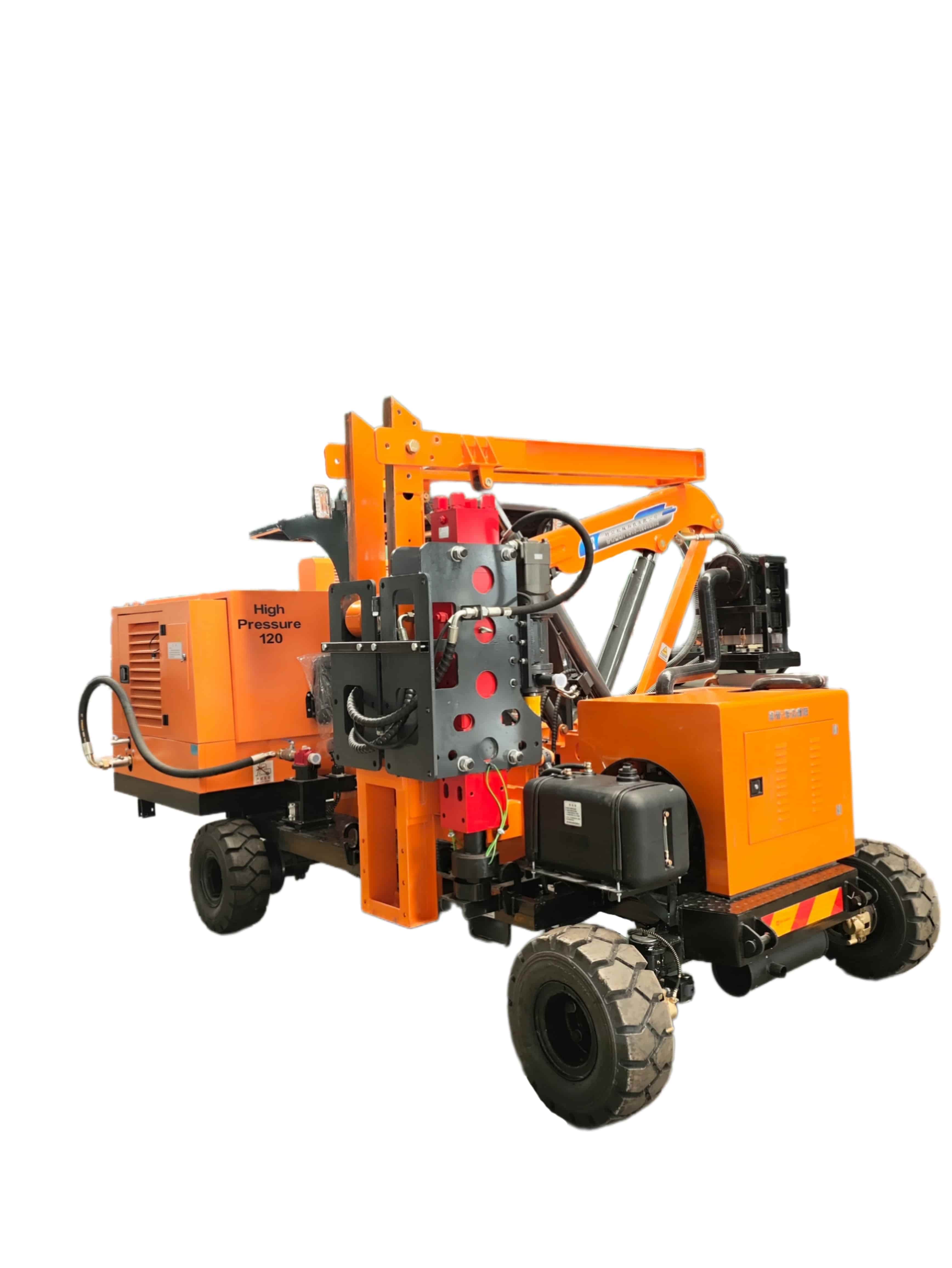

The most prominent feature of this integrated road guardrail pile driver lies in the fact that it is equipped with a hydraulic hammer, a rotary head and an air compressor simultaneously. It can complete various operation tasks such as pile driving, pile extraction and drilling without changing the attachments, which is extremely convenient and improves work efficiency. Pile Driving Height: 3.0m Screw Piling Driving Height: 3.0m Drilling Depth: 2.2m Drilling Diameter: 50~300mm Rated Power: 39 KW Air Compressor:KSCY-330/8
